AXS Product Overview

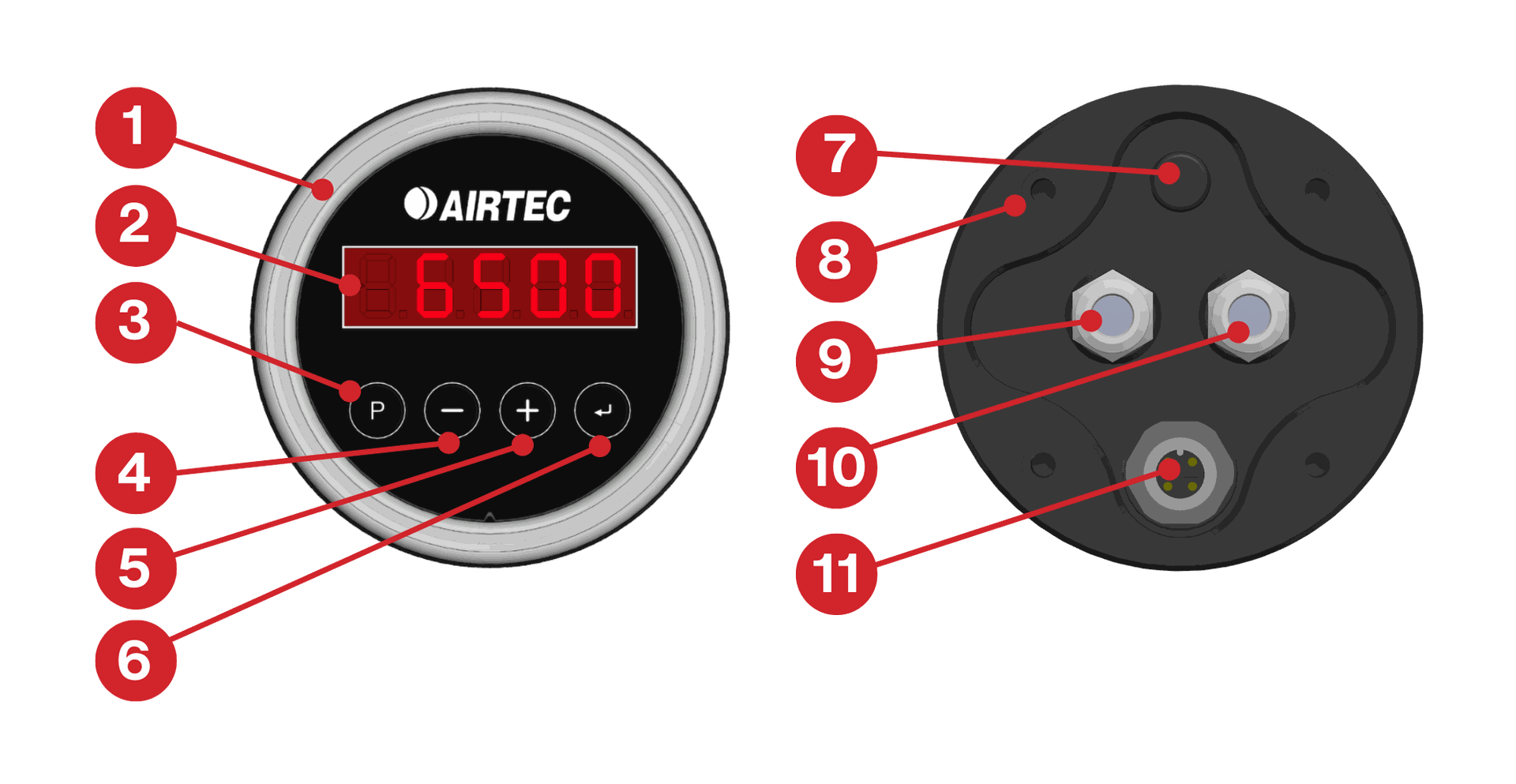

No. | Description | Function |
1 | LED Ring | Glows different colours depending on the device state. See table LED Ring Colour States. |
2 | 7-Segment LED Display | Shows the weight and program mode values. |
3 | [P] Program Button | Enter the program mode. |
4 | [-] Subtract Button | Reduces the reading value. |
5 | [+] Add Button | Increases the reading button. |
6 | [Enter] Enter button | Executes the program function. |
7 | Pressure Compensation Vent | IP Protection |
8 | Mounting Holes x4 | M5 Thread |
9. | Pressure Sensor Channel 1 | 1/4" OD Push in tube fitting. |
10. | Pressure Sensor Channel 2 | 1/4" OD Push in tube fitting |
11. | Power [7-30vdc] and RS232 Connector, | Power connector and RS232 communication. |
