App - Device Calibration

How to Calibrate

Step-by-step guide for ensuring your AXS device stays compliant.

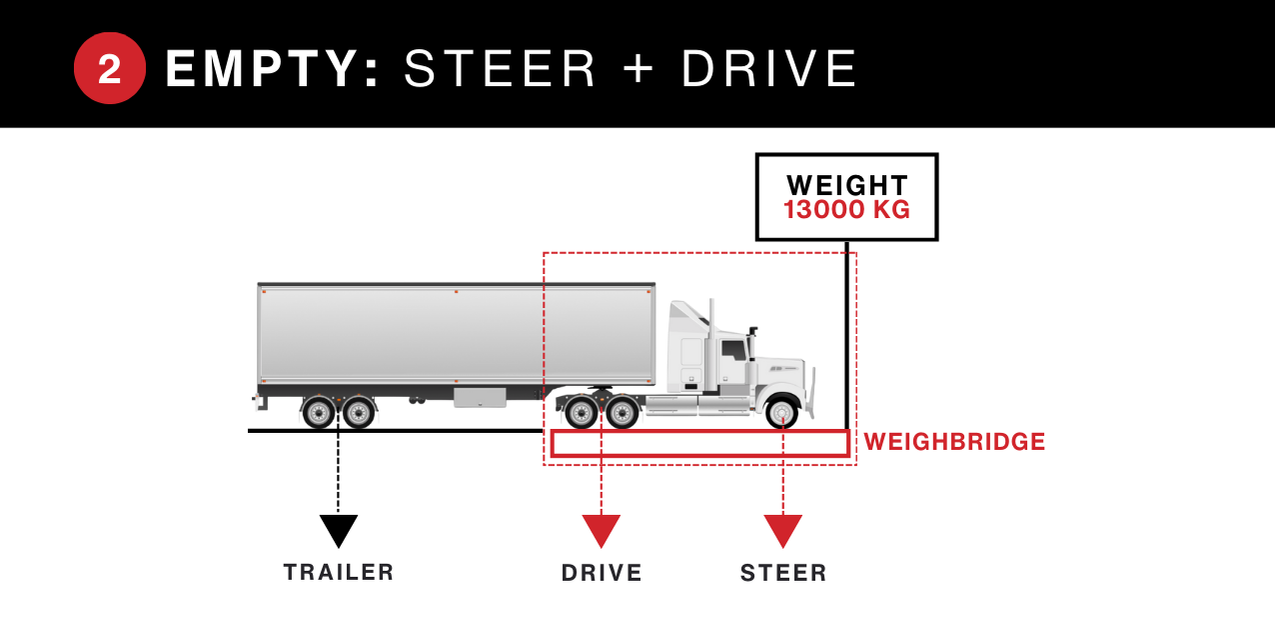

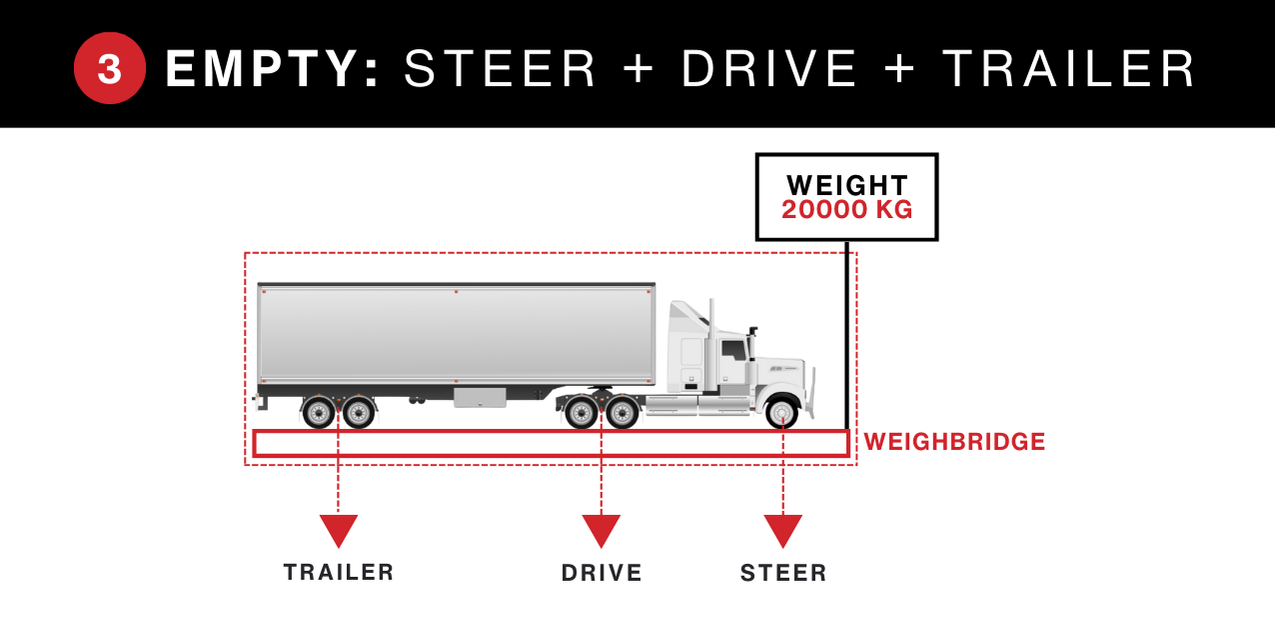

1. Drive over a weighbridge one axle group at a time either while empty or loaded.

2. Record the weights displayed on the weighbridge and drive off to a flat location and disengage the parking brake. Ensure the vehicle is still powered on.

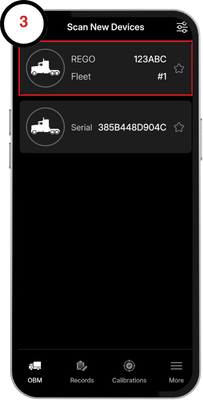

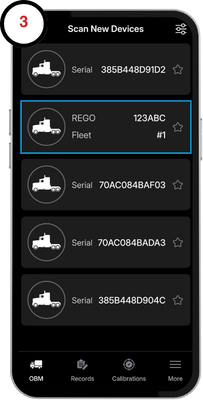

3. Open the SmartOBM app on a mobile device and select your vehicle from the scanning page

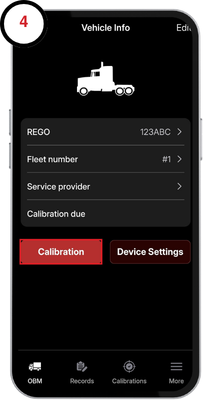

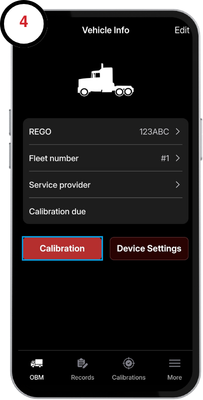

4. Tap the asset that requires calibration to open the Vehicle Info page, then select Calibration to begin.

5. Select the state and type of calibration you are performing and enter the weights gathered from the weighbridge for each axle group. Use the calibrate combination slider if required.

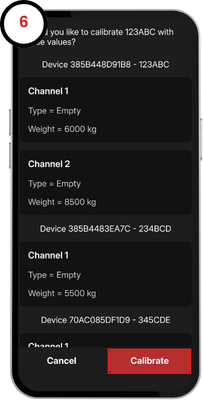

6. Tap calibrate and confirm the calibration.

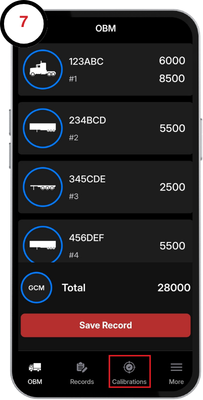

7. Your asset/s are now compliant and a record of your calibration can be found in the calibraton tab.

8. Repeat all previous steps with the vehicle in the remaining state (empty or loaded)
